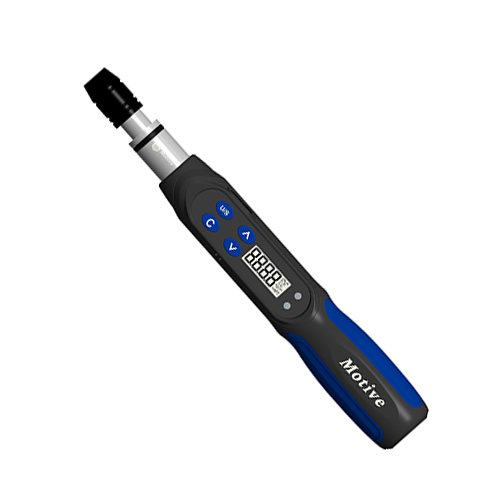

Product name: MPE Series Torque driver
Category: Torque tool Product model: MPE
Product details
MPE Series torque wrench ：
Professional digital torque wrench breaks through the problem that traditional torque tools cannot determine the amount of torque to be applied, and has functions such as displaying torque warning values, memory data and transmission. This skill allows the operator to precisely control the tightening torque value of the wrench, which is very suitable for factory production. Full inspection and quantitative inspection quality analysis to improve production quality and reasonable price.

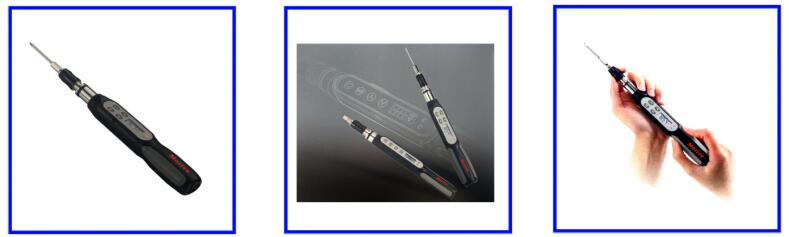

Gallery ：
Features：
function operation: torque value setting, unit setting, mode setting.
Unit settings can be easily switched with the press of a button.

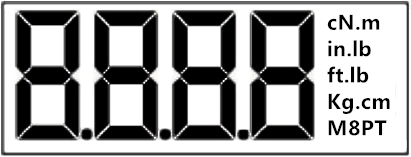

Display indicators ：
Unit selection: cN.m 、in.lb 、kg.cm

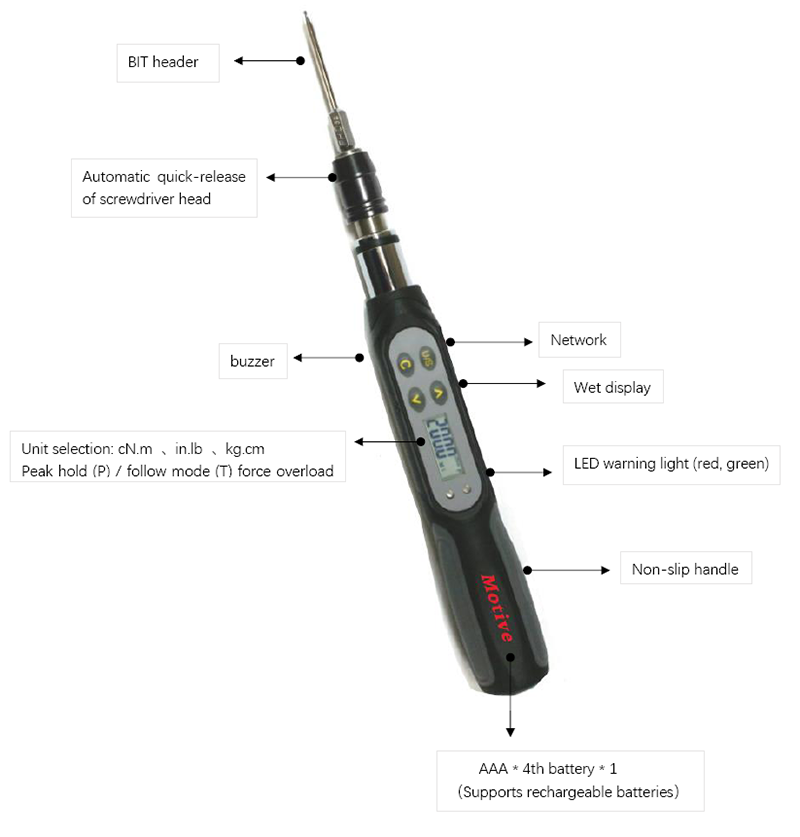

names and functions of parts：
Specifications：
MODEL*1 (MPE Series) | MPE-4 |
BN | |
Accuracy*2 | CW: ±2% |
Maximum torque value | 400 cN.m |
Torque test range | 20-400 cN.m |
Guaranteed accuracy range | 80-400 cN.m |
Resolution | 0.1 cN.m |
LED warning light | 2LED(1Red+1Green) |
Operation mode | Peak hold (P) / follow mode (T) force overload |
Unit selection | cN.m in.lb kg.cm |
Wrench length(mm) | 203 |
BIT header insertion size | 1/4 |
Head special device | Automatic quick-release of screwdriver head |
Communication transmission function | NO |
Number of keys | 4 |
Battery * 3 | AAA×1 |
Operating temperature | 10℃-60℃ |
Storage temperature | -20℃-70℃ |
Humidity | Up to 90% without condensation |
Drop test | 1 meter |
Vibration test*4 | 10g |
Environmental test*5 | PASS |
Electromagnetic compatibility test*6 | PASS |

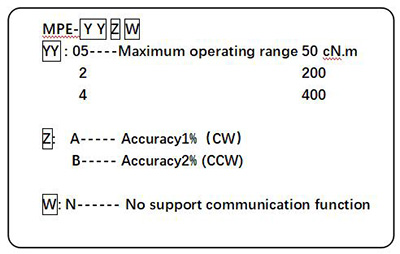

1：Product name selection guidelines
2：The accuracy guarantee range is 20-100% of the maximum range, and the last digit is not included. Torque accuracy is a typical value. The middle groove on the grip is the calibration point. To ensure accuracy, it is recommended to calibrate once a year.
3：One AA battery (Toshiba R6UG carbon zinc battery)
4：Horizontal and vertical test
5：Environmental test:
a. High temperature test,
b. Low temperature test,
c. High temperature and high humidity test
d. temperature change test,
e. impact test, f. vibration test, g. drop test
6：Electromagnetic compatibility test:
a. Electrostatic test (ESD),
b. Radiation tolerance (RS),
c. Radiation measurement (RE)
Ordering Information：
| Capacity & Resolution | |||
Model | Capacity | Indication | Resolution | US Price |
MPE-4 | 400 cN.m(40.82Kg.cm) | 400 cN.m(40.82Kg.cm) | 1cN.m(0.01Kg.cm) | 322 |

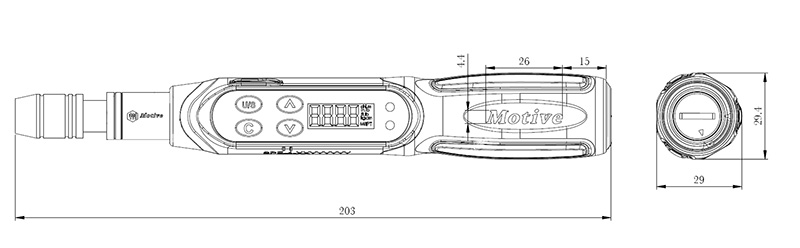

Dimensions(mm) ：
